Wednesday, April 18, 2018

.Workshop Report March 24 201

Jerry Twomey

Next up was Jerry Twomey, our Chapter Safety Coordinator and several years a demonstrator. Jerry always comes up with something interesting and today was no different with ‘inside out’ turning a lamp. He has a very good approach to woodturning which is one well planned step at a time. And as a result he worked through the process making a potentially complex process very simple.

Here are the main points:
  1. Check that the four pieces are square (90degrees).
  2. Glue in pairs with paper joints so that they will be easily split apart later.
  3. Fix squares of ply to the ends to avoid the centres, particularly the tailstock centre from splitting the pieces.
  4. Turn the required shape to the blank leaving some square material on both ends.
  5. Split the joints and reverse the pieces carefully.
  6. Permanently glue the four pieces leaving the turned area to the inside.
  7. Optionally a decorative spindle can be fitted to the centre before the final gluing to camouflage the electric cable.
  8. Replace the plywood squares.
  9. Turn desired shape and put a spigot at one end to fit base.
  10. Turn base and fit to stem.

Jerry’s demo again should appeal to all levels. The beauty of Jerry’s project is that it can be made from small cross-sectional stock, 2”x 2”(50x50) and a small circular piece for the base.
A Big Thank You! Jerry from all of us.

See photos of Jerry’s demo below and also the Competition Winners.
And as always a Report like this will never substitute for the real thing so update your calendar if you  haven’t already

Peter Manning 2nd Advanced with Sean McSweeney Judge
John Ahen 1st Advanced




Jerry Twomey with finished piece


John Ahern


Demo Piece
W
Senan 1st Beginners with Ger Hennessy Judge


Kevin 1st Intermediate with Ger Hennessy Judge

Jin Donovan 3rd Advanced
Workshop Report March 24th.

John Ahern.

John Ahern, esteemed Chairman, stood up to give the first demonstration of the day. Two parts - part one on sharpening and part two on texturing. He began by stating that nice tools, equipment and timber is to no avail without “ edge “ “ and I mean good sharp tools all the time”. He then went on to explain the difference between “grinding” and “sharpening”(honing). Grinding is where you take a damaged cutting edge or an unsatisfactory grind angle and re-shape it that will necessitate the removal of substantial steel. Whereas sharpening (honing) is the removal of the minimum steel to regain keen edge on a dull tool. John went on to introduce his preferred grinding/sharpening system, the Sorby Pro Edge. This is a belt system with a variety of belts available: aluminium oxide for carbon steel (carpentry and joinery tools), Zirconium for high-speed steel and Ceramic also for HSS but more effective and longer lasting. Johns demo was carefully thought out and dealt with questions as they arose. It was obvious that John was convinced of this system and it delivered great edge as he demonstrated later.
The following are main points:
Grinding.
  1. Start with 60grit and work through each grit.
  2. Keep flutes clean and be extremely careful around that cutting edge.
  3. Finish off with 3000 grit.
  4. Optional is fine honing on a strop or leather pad. Homemade pad – ensure smooth leather side is glued down with rough side up.

John also touched on different grindstone types and the importance of keeping the surface of the stone true and clean – there are a variety of dressing tools available. On he went to give a show of fine shavings with each tool previously sharpened. All were impressed. He also demonstrated how a bowl gouge could be used with one hand to stress that with good edge there is no need for force of any sort. To push home the point a little further, when in doubt, stop the lathe and reassess your whole approach – guaranteed its poor edge.

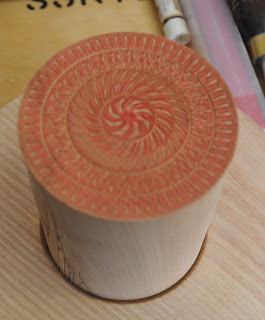

Texturing.
Having comprehensively covered grinding and sharpening John proceeded to an overview of texturing and provided some good tips:
  1. 1000rpm.
  2. Rotary head on texturing tool held at 45 degrees.
  3. Encouraged experimentation with speed and angle of address.
  4. Colour can be applied with ink markers to highlight the actual texture.
  5. A beads or a simple vee can emphasise and separate certain sections of texturing.

Overall a very good and informative demo with plenty for the beginner and the more experienced. The overall thrust of his demo throughout was on the importance of “edge” and this cannot be overstated. So it was good for everyone, I’m sure, to take a moment to reflect on this most important aspect of woodturning.
Thank You! John.
See photos of Johns demo below.

As Always the members would like to thank today's judges Sean Mc Sweeney and Ger Hennessy for judging the competition, and also for their excellent critique.

Monday, April 16, 2018

Cork Chapter Heads Up.



CORK CHAPTER, WOODTURNING SEMINAR AND MASTERCLASS
2018.
 Saturday, 21st  and Masterclass Sunday 22nd April
 at
The Scout Centre
Togher,
CORK


Registration: 9.00-10.00 a.m.  Demonstration commencing at 10.00 a.m. sharp


FEATURED TURNER: Kieran Reynold, well known Dublin based Turner

Cost of seminar:  €50.00.
Hot Lunch and Dessert included. Free tea/coffee will be provided for breaks and for lunch.
Contact: Mick Bouchier at 086 8520542 or email mick.bouchier@gmail.com, before 14th April, if possible.
There will be an OPEN competition.  Bring your pieces on the day - you may enter 3 pieces.
There may be a few places available for a Masterclass on the following day.  These will be filled on a first come basis.



Saturday, April 7, 2018

Annual Seminar 2018.

Annual Seminar.
Cork Chapter of the Irish Woodturners Guild will hold their annual Seminar at the Scout Hall, Tramore Road junction with Togher Road (Eircode: T12 W658), on Saturday 21st April.
Kieran Reynolds is the guest demonstrator and to see samples of his work check-out Pinterest.ie.

Competition.
The Competition  will be an Open Competition.
Each person attending can submit 3 pieces.

The Master Class on Sunday the 22nd April will be held in the Home Workshop of Tony Farrell, The Gables, Ballinora, Waterfall (Eircode: T12 W8NY).


Regards,

Michael Bouchier, Secretary Cork Chapter IWG
